The body is with heavy-duty steel and with special heat treatment process, better stability.
Stable high speed feeding system, 20 m / min. and with speed adjustment 5-20m, greaty improves the production efficiency.
All the spindle are with seperater motors, makes the cutting strong.
The work table is with special treatment process, better durability and no deformation.

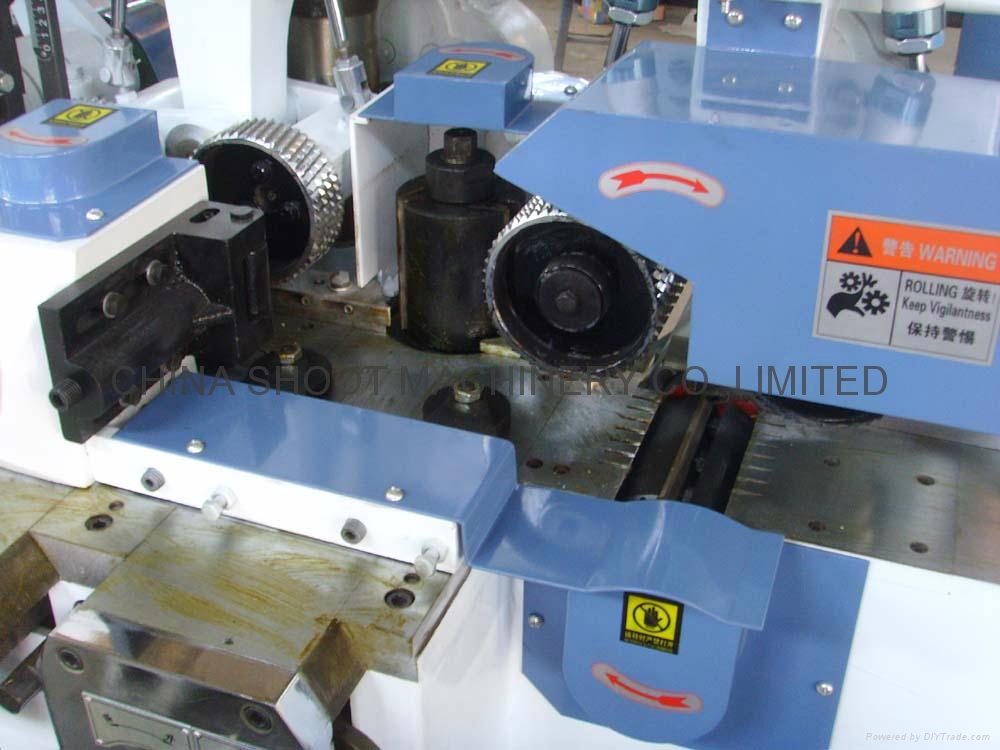

Feeding wheel, using cylinder compression type, can be individually adjusted to its pressure, which makes feeding more smoothly.
High speed spindle equipped with SKF high-speed bearings, more smooth cutting.
Spindle adjustment is concentrated in the front of the machine, more humane strcture.
The work table is with active feeders, feeding more smoothly.
All the parts are made with fine processing of high-precision CNC Center, and this ensures stable and efficient operation.
The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
Model
MB-4016F
Processing width
18--160mm
Processing thickness
8--100mm
Feeding speed
5--20m/min
Feeding power
2.2kw
Knife speed
6000r/min
First bottom power
3kw
Left cutter power
3kw
Right cutter power
2.2kw
Rirst top power
5.5kw
Beam lifting power
0.37kw
Total power consumption
16.27kw
Max. turning circle
115mm
Double Pillar Up And Down High Sheed Four Side Thicknesser With Double Column
Feature
The body is with heavy-duty steel and with special heat treatrment process, belter stability.
Stable high speed feeding system, 33m/min, and with speed adjustment 8-33mm, greatly improve production efpciency.
All the spindle are with seperater motors, makes the cutting strong.
The work table is with special treatment process, better durability and no deformation.
Feeding wheel, using cylinder compression type, can be individuslly adjusted to its pressure, which makes feeding more smoothly.
High speed spindle equipped with SKF high-speed bearings, more smooth cutting.
Spindle adjustment is concentrated in the front of the machine, more hurnane strcture.
The work table is with active feeders, feeding more smoothly.
All the parts are made with pne processing of high-precision CNC Center, and this ensures stable and efpcient operation.
The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
Double pillar up and down, more stable
Model
MB-4016Z
Processing width
15-170mm
Processing thickness
10-110mm
Feeding speed
8-33m/min
Feeding motor power
4kw
Upper and down knife speed
6800r/min
Upper and down knife diameter
100mm
Upper and down knife motor power
4kw/2.2kw
Right and left knife speed
6800r/min
Right and left knife diameter
100mm
Upper/left/right knife max cutting round
Φ160
Down knife max cutting round
Φ125
Right and left knife motor power
3kw/3kw
Up and down speed
222mm/min
Up and down motor power
0.37kw
Total power
16.57kw
Overall dimensions
2460x1250x1580mm
Specifications︰
Feature The body is with heavy-duty steel and with special heat treatment process, better stability. Stable high speed feeding system, 20 m / min. and with speed adjustment 5-20m, greaty improves the production efficiency. All the spindle are with seperater motors, makes the cutting strong. The work table is with special treatment process, better durability and no deformation. Feeding wheel, using cylinder compression type, can be individually adjusted to its pressure, which makes feeding more smoothly. High speed spindle equipped with SKF high-speed bearings, more smooth cutting. Spindle adjustment is concentrated in the front of the machine, more humane strcture. The work table is with active feeders, feeding more smoothly. All the parts are made with fine processing of high-precision CNC Center, and this ensures stable and efficient operation. The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicator.
