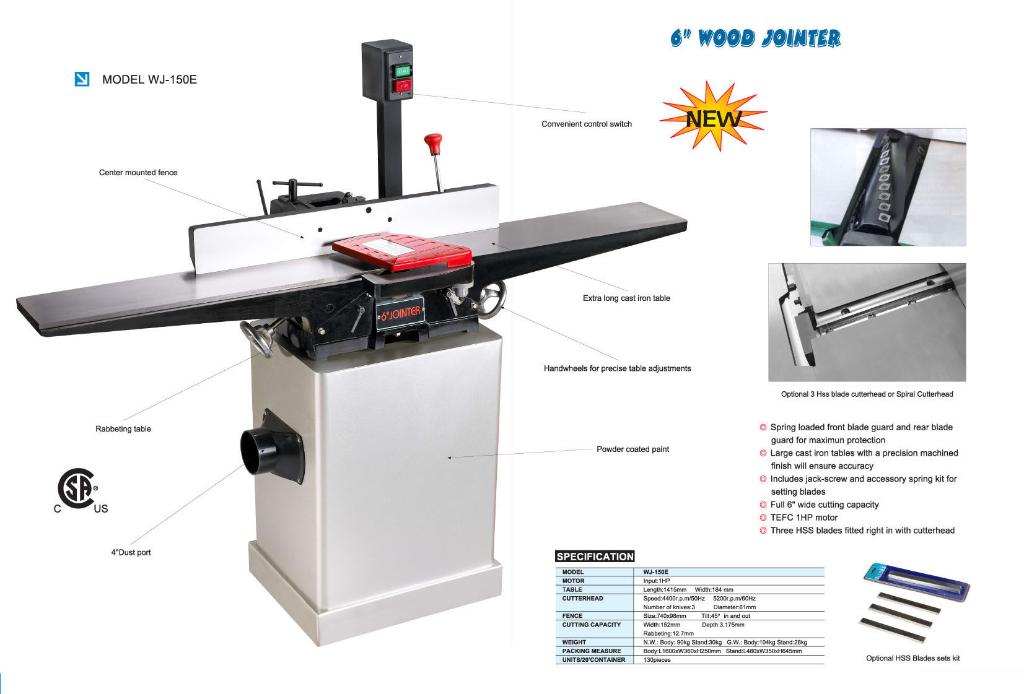

| 6"wood jointer |
|
| Specification: |
|
| *Spring loaded front blade guard and rear blade guard for maximum protection |
| *Large cast iron tables with a precision machined finish will ensure accuracy |
| *Includes jack-screw and accessory spring kit for setting blades |
| *Full 6"wide cutting capacity |
|
| *TEFC 1HP motor |
|
| *Three HSS blades fitted right in with cutterhead |
|
| Model |
WJ-150E |
| Motor |
1HP |
| Table |
Length:1415mm Width:184mm |
| Cutterhead |
Speed:4400rpm/50Hz 5200rpm/60Hz |
| Number of knives |
3 |
| Diameter |
61mm |
| Fence: Size |
740x98mm |
| Tilt |
45degree in and out |
| Cutting Capacity |
Width:152mm |
| Depth |
3.175mm |
| Rabbeting |
12.7mm |
| Weight |
N.W.:Body: 90kg Stand:30kg |
| |
G.W.:Body: 104kg Stand:28kg |
| Packing |
Body: 1600x360x250mm |
| Stand |
480x350x645mm |
| Units/20'container |
130pieces |
