Model No.︰SH-S200A
Brand Name︰SHOOT
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc

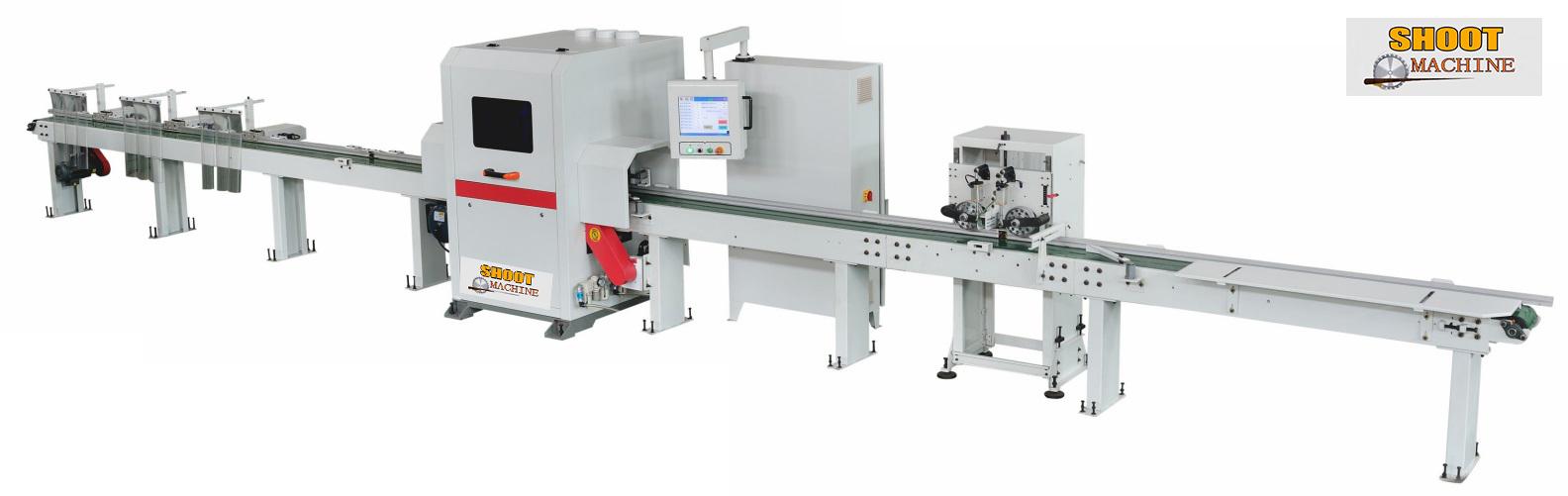

| CNC Optimization Saw Machine | |
| Feature | |
| A. Front conveyor and measuring station | |
| 1. Humanized drawing table; | |
| 2. Height limit and material stopping device; | |
| 3. Wood guide device; | |
| 4. Support overlap or disordered feeding. | |
| B. Host and electronic control: brand collection | |
| 1. International famous brand Delta servo motor; | |
| 2. International famous brand Schneider Electric Appliances; | |
| 3. International famous brand motion control system; | |
| 4. Touch screen computer operation. | |
| C.Discharge conveyor | |
| 1. Material head section tail recovery point; | |
| 2. Pushing device; | |
| D. support remote installation, debugging and maintenance function. | |
| Optimal saw optimization mode | |
| 1. Length optimization: according to the selected sawing list, optimize the sawing according to the length | |
| 2. Value optimization: According to the selected sawing list, optimize the execution of sawing according to the highest value plan | |
| 3. Grade optimization: according to the selected sawing list, optimize the sawing according to the wood grade | |
| 4. Quantity order sawing: according to the selected sawing list, sawing according to the quantity order. | |
| 5. Defect sawing: only sawing the wood where the line is drawn | |
| Model | SH-S200A |
| Working width | 20-200mm |
| Working thickness | 12-80mm |
| Max.cuting size | 120x80mm |
| Length of feeding work table | 6300mm |
| Nomber of feeding work table | 5000mm |
| Number of pusher | 3 groups |
| Width of work table | 300mm |
| Min ingoing length | 400mm |
| Feeding table width | 80m/min |
| The number of feeding wheels of the main engine | 6 groups |
| Saw blade motor power | 455mm |
| Saw shaft speed | 3500r/min |
| Saw blade motor power | 5.5kw |
| Sawing up and down movement frequency | 2-4 times/1 second |
| Lift motor power | 3kw |
| Feed motor power | 3kw |
| Out feed motor power | 0.75kw |
| Pressing wheel lift motor power | 0.18kw |
| Total power | 12.43KW |
| Measuring wheel size | 160mm |
| Air Tolerance | 1000NL/min |
| Air Pressure | 0.6mpa |
| Diameter of dust extrance | Ф140mm/x3 |
| Exhaust speed | 30m/s |
| Weight | 1500KG |
| Dimensions | 18000x1200x1800mm |
Export Markets︰ Europe,American,Middle-east
Payment Details︰ T/T,L/C at sight, Western Union
Ship Date︰ 30 days after receive payment
Standard Met︰ CE
