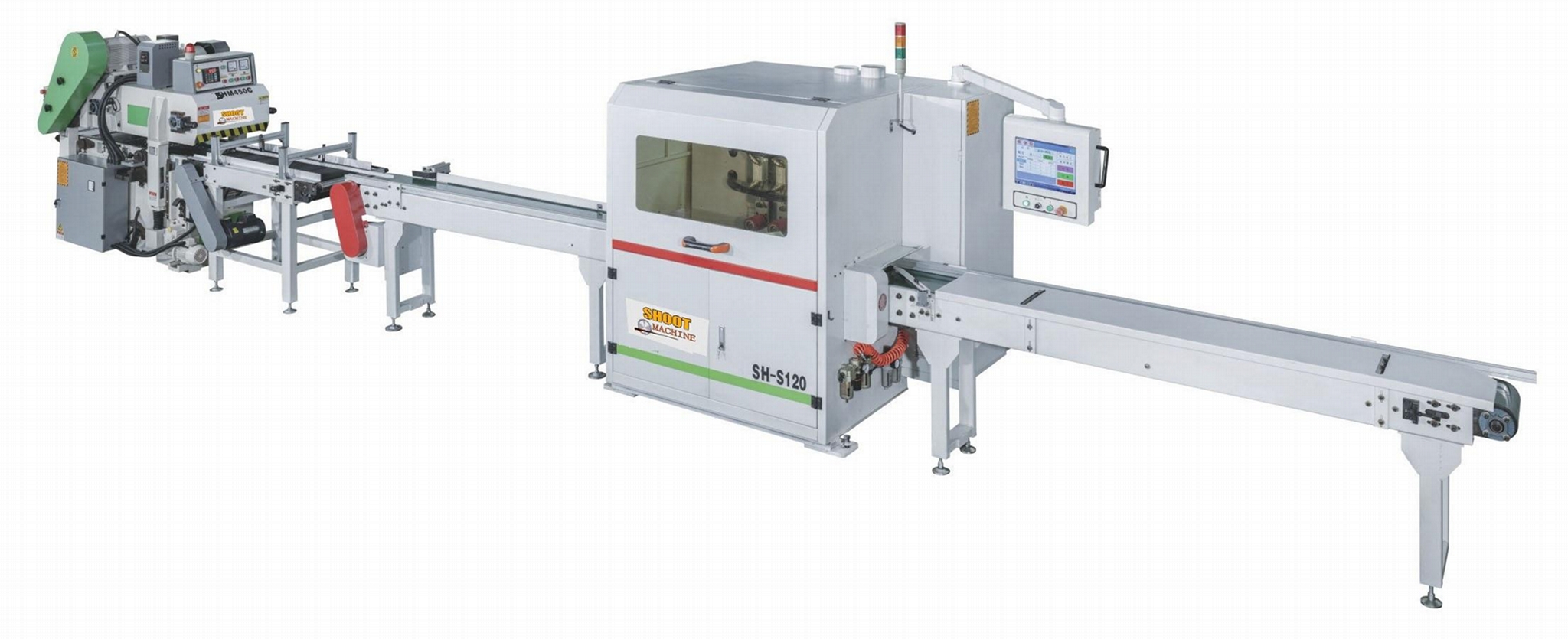

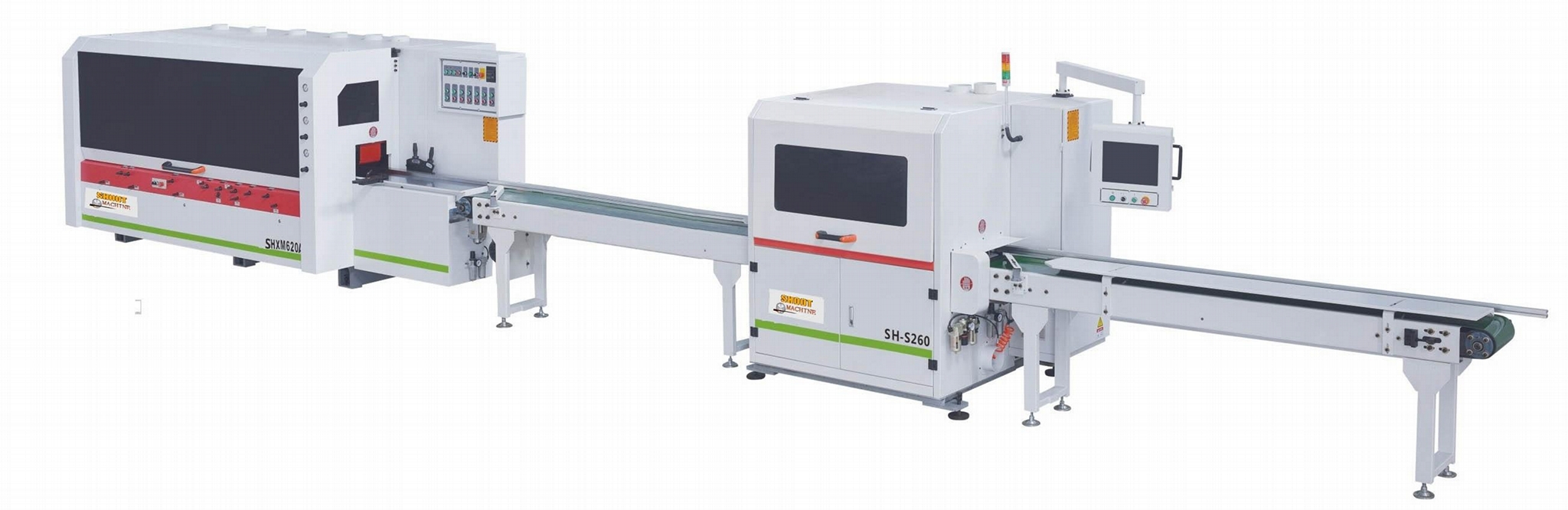

Model No.︰SH-S120,SH-S260
Brand Name︰SHOOT
Country of Origin︰China
Unit Price︰US $ 30800 / pic
Minimum Order︰1 pic

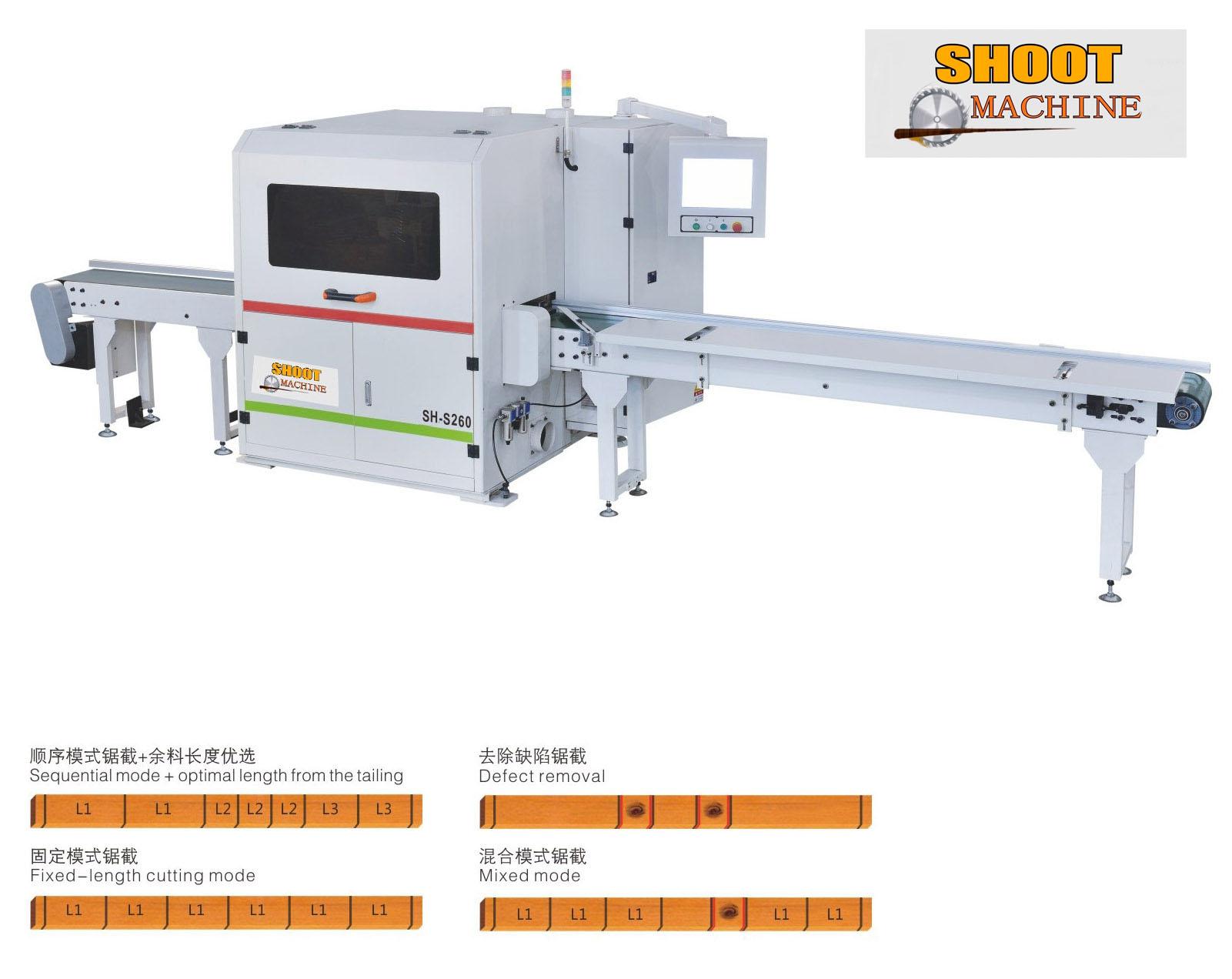

| CNC Optimization Saw Machine | ||
| Model | SH-S120 | SH-S260 |
| Working width | 20-120mm | 20-260mm |
| Working thickness | 12-50mm | 12-80mm |
| Max. cutting size | 80x50mm | 180x80mm/150x100mm |
| Width of work table | 330mm | 330mm |
| Min ingoing length | 400mm | 400mm |
| Feeding speed | 80m/min | 80m/min |
| Number of main machine feeding wheels | 5 | 5 |
| Saw blade diameter | 405mm/455mm | 455mm/510mm |
| Saw shaft speed | 3500r/min | 3500r/min |
| Saw blade motor power | 5.5KW | 5.5KW |
| Frequency of sawing up and down movement | 2-4times/sec | 2-4times/sec |
| Lift motor power | 3KW | 3KW |
| Feed motor power | 3KW | 3KW |
| Out feed motor power | 0.75KW | 0.75KW |
| Pressing wheel lift motor power | 0.18KW | 0.18KW |
| Total power | 12.43KW | 12.43KW |
| Working volume | 1000NL/min | 1000NL/min |
| Working pressure | 0.6Mpa | 0.6Mpa |
| Vacuum port diameter | 140mm/x2 | 140mm/x2 |
| Vacuuming wind speed | 30m/s | 30m/s |
| Dimensions | 6500x1400x1800mm | 6500x1400x1800mm |
| Weight | 1000kg | 1000kg |
|
Look Machine Video,click the Youtube website: |
||
| https://youtu.be/MltG7wYI200 | ||
Export Markets︰ Europe,American,Middle-east,Africa,Asia,South-America,North-America
Payment Details︰ T/T,L/C at sight, Western Union
Ship Date︰ 20days after receive payment deposit
Standard Met︰ CE
