Product Description

Heavy duty Auto Woodworking Double side Planer & Sawing Machine
Feature
1. Double side planer
2. Down saw

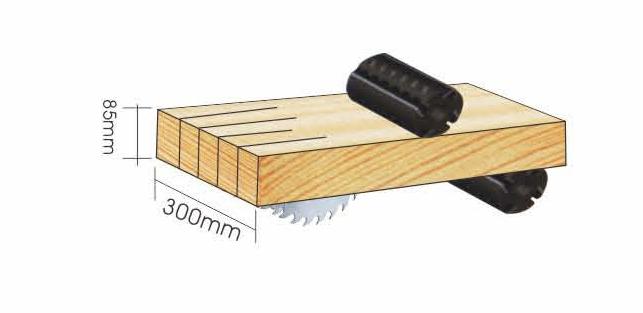

3. Working : first step doube side planer,second step down rip saw
Model	SHMJ330B	SHMJ320B	SHMJ323B
Maximum processing width	300mm	200mm	230mm
Maximum processing thickness	85mm	85mm	85mm
Feeding speed	5-35m/min	5-35m/min	5-35m/min
Spindle diameter	50mm	40mm	40mm
Saw shaft diameter	50mm	50mm	50mm
Spindle speed	7000r/min	7000r/min	7000r/min
Saw shaft speed	4000r/min	4000r/min	4000r/min
Saw shaft keyway	16*5mm	16*5mm	16*5mm
Cutter shalf left right moverable	10mm	10mm	10mm
Air pressure	0.4Mpa	0.4Mpa	0.4Mpa
The first lower shaft	7.5KW/10HP	4kw/5.5HP	5.5kw/7HP
The first upper shaft	11KW/15HP	5.5kw/7HP	7.5KW/10HP
Feeding motor	4kw/5.5HP	3kw/4HP	3kw/4HP
Feeding lift motor	0.55kw/0.75HP	0.75kw/1HP	0.75kw/1HP
Saw shaft lifting motor	\	0.55KW/0.7HP	0.55KW/0.7HP
Saw spindle motor	22KW/29.33HP	22KW/30HP	22KW/30HP
Total motor power	45.6KW/61.33HP	35.8KW/48.8HP	39.1KW/53.3HP
The first lower shaft	125mm	125mm	125mm
The second upper shaft	125mm	125mm	125mm
Lower saw shaft	305mm	305mm	305mm
Feeding wheel diameter	140mm	140mm	140mm
Dust absorption tube diameter	150mm	125mm	150mm
Net weight	2500kg	2700kg	2500kg
Overal dimensions	3250x1300x1820mm	3370x1160x1730mm	3370x1300x1820mm
Look Machine Video,click the Youtube website:
1.
https://youtu.be/8fWJFtaXJ48
2.
https://youtu.be/hf6J3yUz2SM

Specifications︰ *Maximum working width:300-200mm
*Max. thickness 80mm

Export Markets︰ Europe,American,Middle-east,Africa

Payment Details︰ T/T,L/C at sight, Western Union

Ship Date︰ 20days

Standard Met︰ CE

Product Image
