Model No.︰SHMJ620DA
Brand Name︰SHOOT
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pic
|
Heavy duty Woodworking Four-side Planer and Sawing Machine SHMJ620DA

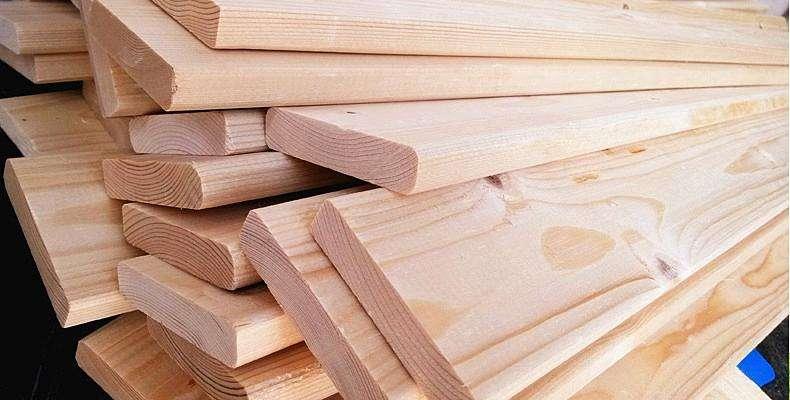

Finished Wood Products by machine:
|
|||
| Feature | |||

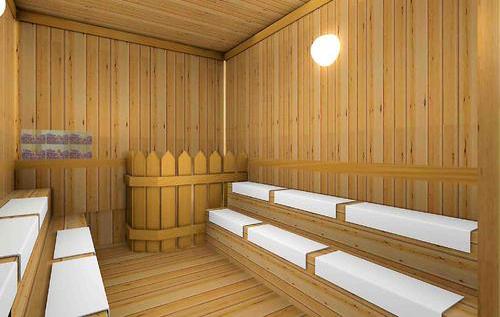

| Professional solution: large quantities of wooden panels, sauna board, bed, sofa bottom seat board wood board material specifications. | |||
| Four side planer saw machine structure is reasonable, the operation is simple and convenient. | |||
| Saw shaft frequency independent operation, transportation, according to wood hardness choose reasonable transmission speed. | |||
| Hard chromium plating on the working table, smooth and wear resistance | |||
| Four groups of active vertical out of the roller wheel, to ensure that the feeding material is smooth. | |||
| Saw blade adopts automatic jet cooling device with automatic jet, and the usage rate of saw blade is promoted. | |||
| High efficiency, energy saving, material saving, one machine with multiple purposes. | |||
| Model | SHMJ620DA | SHMJ620D | SHMJ616D |
| Working Width | 20-200mm | 20-200mm | 20-160mm |
| Working Thickness | 10-120mm | 10-120mm | 10-120mm |
| Min. Working Length (intermittent/continuous) | 650/480 | 650/480 | 650/480 |
| Saw Shaft Diameter | 40 | 40 | 40 |
| Saw Shaft Speed | 4500r/min | 4500r/min | 4500r/min |
| Planer Shaft Diameter | 40 | 40 | 40 |
| Planer Shaft Speed | 6000r/min | 6000r/min | 6000r/min |
| Feeding speed | 5-28m/min | 5-28m/min | 5-28m/min |
| First Under The Knife | 125 | 125 | 125 |
| Right and Left Vertical Knife | 110-180 | 110-180 | 110-180 |
| The Knife | 110-180 | 110-180 | 110-180 |
| Left and Right Blade Diameter | 180-250 | 180-250 | 180-250 |
| Frist Under The Knife | 5.5kw/7.5HP | 5.5kw/7.5HP | 4kw/5.5HP |
| Left and Right Vertical Knife, The Knife | 2x5.5kw/7.5HP | 2x5.5kw/7.5HP | 2x4kw/5.5HP |
| Left and Right Saw Spindle Motor | 2x15kw/20HP | 2x15kw/20HP | 2x15kw/20HP |
| Second Under Shaft Motor | \ | \ | \ |
| Feeding Motor | 4kw/5.5HP | 4kw/5.5HP | 3kw/4HP |
| Rear Auxiliary Feeding Motor | 2x0.37kw/1HP | 2x0.37kw/1HP | 2x0.37kw/1HP |
| Beam Lifting Motor | 0.75kw/1HP | 0.75kw/1HP | 0.75kw/1HP |
| Total Motor Power | 51.49kw | 51.49kw | 36.99kw |
| Air Pressure | 0.3-0.6Mpa | 0.3-0.6Mpa | 0.3-0.6Mpa |
| Suction Inlet Diameter | 2x150+4x120 | 2x150+4x120 | 2x150+4x120 |
| Dimensions | 4300x1550x1720mm | 4300x1550x1720mm | 4000x1550x1720mm |
| Weight | 3500kg | 3000kg | 2600kg |
| Look Machine Video,click the Youtube website: | |||
| https://youtu.be/snQvu-IoOh0 | |||
Export Markets︰ Europe,American,Middle-east
Payment Details︰ T/T,L/C at sight, Western Union
Ship Date︰ 20days
Standard Met︰ CE
