Model No.︰SHMJ153
Brand Name︰SHOOT
Country of Origin︰China
Unit Price︰US $ 3100 / pic
Minimum Order︰1 pic
| Auto-Feed Rip Saw Machine | |
| Feature | |

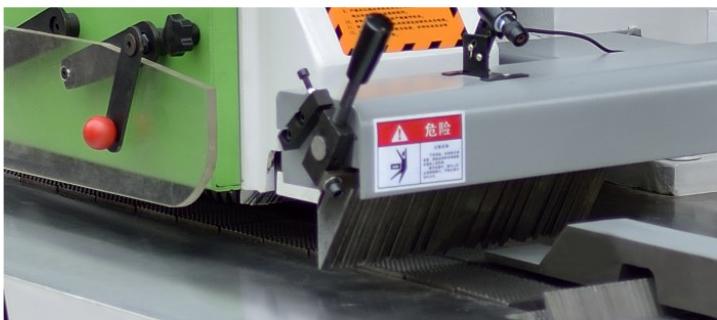

| The device equipped with protection-back retaining device ensure the safety of operating personnel, it is strictly forbid to tune up or dismantle protection-back device. | |
| The cover cap of the saw equipped with sensors, when opening the cover cap, the equipment will automatically shut down. | |
| The device must start the saw blade first to start transport. | |
| The electric box set the automatic protection system, when the oil pump runs out off oil, it will automatically shut down to protect the rail and chain plates. | |
| The machine installed infrared alignment device, in order to find the exact location to improve the efficiency of wood processing. | |
| Model | SHMJ153 |
| Saw bit diameter | 305mm(12") |
| Max working thickness | 85mm |
| Sawing width | 360mm |
| Spindle speed | 3000r/min |
| Spindle diameter | 24.4 |
| Feeding speed | 12-22m/min |
| Feeding mortor power | 0.75kw |
| Main motor power | 7.5kw |
| Total power | 9kw |
| Operating platform size | 1300x715mm |
| Overall dimensions | 1500x950x1600mm |
| Weight | 750kg / 800kg |
| Look Machine Video,click the Youtube website: | |
| 1. | |
| https://youtu.be/XIZgfjP59V8 | |
| 2. | |
| https://youtu.be/HORj9_5-4ZM | |
Export Markets︰ Europe,North America,Asia,Africa,Middle-East
Payment Details︰ T/T,L/C at sight,Western Union
Ship Date︰ 15 days after receive payment
